Product Center
Three core product series comprehensively covering robotic tactile perception and applications.
Tangential Force Haptic Sensor Series
Tangential Force Fingertip Tactile Sensor

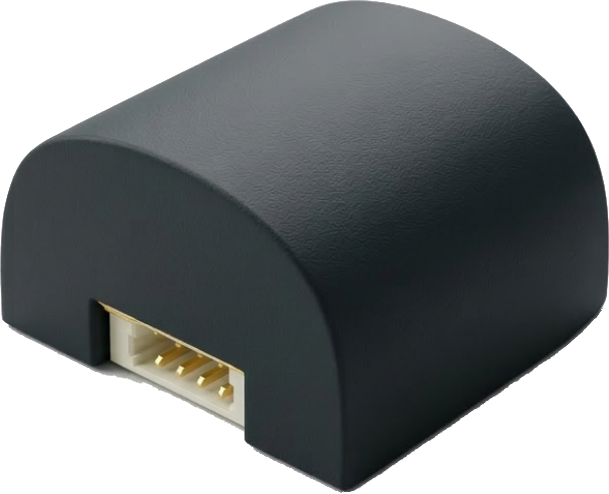

TRIFORCE SENSOR (fingertip)
Leverages globally leading 3D force decoupling algorithms to deliver precise haptic feedback for robotics, industrial automation, healthcare, and education & entertainment applications.
Technical Specifications
| Output Signal： | Triaxial Force (Fx, Fy, Fz)/N |
| Normal Vector Range： | 0 - 20N / Custom |
| Tangent Range： | -10 - 10N / Custom |
| Force Sensitivity： | Up to 0.01N |
| Sampling Frequency： | 0 - 2800Hz Free Configuration |
| Rated Power Consumption： | As low as 0.18w |
| Repetitive Lifespan： | 600K |
| Overload Protection： | 200% overload protection |
| Product Dimensions (mm)： | L15*W13*H7.25; L21*W17*H5.20 |
| Mounting Method： | Threaded hole fixation |
| Communication Protocol： | UART Serial / Custom |
| Product Price： | 599 RMB starting from |
Tactile Data Acquisition Kit

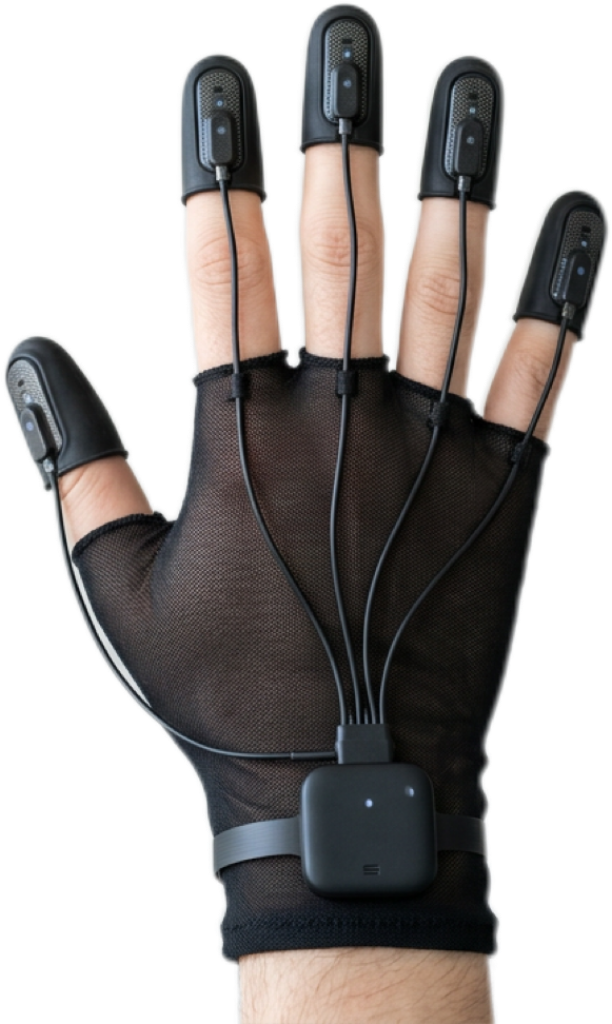

Data Capture Gloves
Professional Haptic Data Recording and Analysis
Multi-channel synchronous acquisition system supporting real-time data transmission and storage, providing high-quality haptic data to support robot training and algorithm optimization.
Technical Specifications
| Force Output Signal： | Triaxial Force (Fx, Fy, Fz)/N * 5 |
| Position Output Signal： | Finger position + 3-axis rotation * 5 |
| Normal Vector Range： | 0 - 20N / Custom |
| Tangent Range： | -10 - 10N / Custom |
| Signal Latency： | < 10 ms |
| Force Sensitivity： | Up to 0.01N |
| Corner Accuracy： | < 3° |
| Sampling Frequency： | 500 Hz |
| Wireless Transmission Range： | 10 m |
| Battery life： | 2.5 hours |
| Communication Protocol： | USB / Wi-Fi / Custom |
Other Products
Tactile Analysis Large Model
Smart Control with Haptic Feedback
An intelligent control system integrating deep learning and haptic feedback to enable robots to perform complex operations such as adaptive grasping and precision assembly.
Key Advantages
Need a product demo?
Our technical team will provide you with a detailed product demo and technical support.
Schedule a Product Demo
